Chapter -1
Commands to setup Nginx and PhpMyAdmin in Ubuntu EC2 Instance :
Note: At first
create the Ubuntu EC2 instance in your Amazon Web Service as shown in the
video.
Install Linux, Nginx, MySQL, PHP (LEMP stack)
---------------------------------------------------------------------------------------------------
1. Update and Upgrade Ubuntu
sudo apt-get update && sudo apt-get upgrade
-----------------------------------------------------------------------------------------------------------
2. Install the Nginx Web Serve
In order to display web pages to our site visitors, we are going to employ
Nginx, a modern, efficient web server.
sudo apt-get install nginx
-----------------------------------------------------------------------------------------------------------
3. Now, if you give url in your browser as:
http://server_domain_or_IP

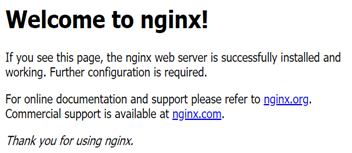

You will see:
--------------------------------------------------------------------------------------------------------
4. Install MySQL Server
sudo apt-get install mysql-server
-----------------------------------------------------------------------------------------------------------
5. Type Command to open mysql as:
sudo mysql
-----------------------------------------------------------------------------------------------------------
6. Create User using command as:-
There will be appearing as mysql> and then
type below command
CREATE
USER 'admin'@'%' IDENTIFIED BY 'admin';
It means that the user name is ‘admin’ and
password is also ‘admin’
----------------------------------------------------------------------------------------------------------
7. Grant Permission using the command as:-
GRANT ALL PRIVILEGES ON *.* TO 'admin'@'%' WITH GRANT OPTION;
-------------------------------------------------------------------------------------------------------
8. Install PHP for Processing
sudo apt-get install php-fpm php-mysql
---------------------------------------------------------------------------------------------------------
9. Configure Nginx to Use the PHP Processor
The only configuration change we still need is to tell Nginx to
use our PHP processor for dynamic content. We do this on the server block level
(server blocks are similar to Apache’s virtual hosts). Open the default Nginx
server block configuration file by typing:
sudo nano /etc/nginx/sites-available/default
Initially you can see these
in configuration
You need to change some of the above commented section to uncomment and add some of the lines as shown in below screenshot:
Check the php version
before configuring as we need this in the below configuration process. To check
the php version type the command as:
php --version
In below configuration,
you have to add index.php as shown in screenshot below and server_name
is your ec2 instance Public IPv4 DNS or Public IPv4 address:
In my case it's an
elastic ip address i have created i.e., 34.239.223.82.
After changing into this above file type ctrl+o
to write and save and ctrl+x to exit.
----------------------------------------------------------------------------------------------------------
10. Type below command to check whether configuration files have error or not:
sudo nginx -t
It should say:
nginx: the configuration file
/etc/nginx/nginx.conf syntax is ok
nginx: configuration file
/etc/nginx/nginx.conf test is successful
If
it’s giving an error then re-check the configuration file in a calm manner.
--------------------------------------------------------------------------------------------------------
11. Reload the nginx:
sudo systemctl reload nginx
----------------------------------------------------------------------------------------------------------
12. Install PhpMyAdmin using the command as:
sudo apt-get install phpmyadmin
During
the installation process of Phpmyadmin you will be asked to choose web server
as we are using ‘Nginx’ as a web server so don’t choose any of them press ‘tab’
and press enter on ‘ok’.
After
that you will be asked for configure database for phpmyadmin with
dbconfig-common hit enter on ‘yes’ option’
After
that you will be asked for a password. Give the password that is used to create
the user as in step 7 in my case it’s ‘admin’. I will give the same
password.
Give
password and confirm the password as well.
----------------------------------------------------------------------------------------------------------
13. Finally, Create symbolic link:
For the Nginx web server to find and serve the phpMyAdmin files correctly, we’ll need to create a symbolic link. Use the command as:
sudo ln -s /usr/share/phpmyadmin
/var/www/html
This will
create the symbolic link also known as symlink to the /var/www/html directory.
After
that restart nginx
sudo systemctl restart nginx
----------------------------------------------------------------------------------------------------------
14. Now all configuration Completed!! Go to your browser and give url as
http://you_public_ipv4_address/phpmyadmin/
In
my case it’s:
http://34.239.223.82/phpmyadmin/
We have successfully configured phpMyAdmin with Nginx web server.
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
Chapter-2
Setup Django Project With Gunicorn and Supervisor In AWS
[Note: use sudo Infront of all commands for ubuntu]
1. At first setup the project in ubuntu EC2 instance
Install virtualenv with
the command as:
sudo apt-get install python3-venv
To create virtualenv use:
python3 -m venv env_name
------------------------------------------------------------------------------------------------------
2. Install mysqlclient inside the virtual environment of EC2 instance:
pip install mysqlclient
If error occurred then just install
some of the file as ‘.whl’ file won’t be supported in linux platform.
[Note: If error occurred
while installing mysqlclient give command in new terminal as:]
sudo apt-get install python3
python3-dev python3-pip libxml2-dev libxslt1-dev zlib1g-dev libffi-dev
libssl-dev
Also
Run:
sudo apt
install libmysqlclient-dev
------------------------------------------------------------------------------------------------
3. Install Gunicorn:
Gunicorn 'Green Unicorn' is a Python WSGI HTTP Server
for UNIX. Gunicorn knows how to run a web application based on the hook between
the WSGI server and the WSGI-compliant web app.
pip install
gunicorn
To
learn more about Gunicorn follow below link:
https://www.fullstackpython.com/green-unicorn-gunicorn.html
------------------------------------------------------------------------------------------------------------------------
4. Bind the application with gunicorn:
Specify a server socket to bind.
Syntax:
gunicorn
--bind 0.0.0.0:8000 Project_Name.wsgi:application
Example:
gunicorn
--bind 0.0.0.0:8000 DemoProject.wsgi:application
-----------------------------------------------------------------------------------------------------------------------
5. Install supervisor:
Supervisor
is a process manager to ensure gunicorn starts, restarts, and runs when we need
it. Supervisor will look after the Gunicorn process and make
sure that they are restarted if anything goes wrong, or to ensure the processes
are started at boot time.
sudo apt-get
install -y supervisor
--------------------------------------------------------------------------------------------------------------------
6. Configure supervisor
Create configuration so that supervisor could read
from that configuration.
Step 1: Go to the conf.d directory
cd /etc/supervisor/conf.d/
Step 2: Create gunicorn.conf file
sudo touch gunicorn.conf
Step 3: Configure the gunicorn.conf file with following lines of code:
sudo nano gunicorn.conf
configuration
file will be open in nano text editor and inside that file copy below
configurations:
Syntax:
[program:gunicorn]
Directory=path_to_django_project
command=path_to_gunicorn
–workers 3 --bind unix:/path_to_project/app.sock Project_Name.wsgi:application
autostart=true
autorestart=true
stderr_logfile=/var/log/gunicorn/gunicorn.err.log
stdout_logfile=/var/log/gunicorn.out.log
[group:guni]
programs:gunicorn
Example:
[program:gunicorn]
Directory=/var/www/html/Django
command=/var/www/html/demo_env/bin/gunicorn
--workers 3 --bind unix:/var/www/html/Django/app.sock DemoProject.wsgi:application
autostart=true
autorestart=true
stderr_logfile=/var/log/gunicorn/gunicorn.err.log
stdout_logfile=/var/log/gunicorn.out.log
[group:guni]
programs:gunicorn
Now, press
ctrl+o to write and save and ctrl+x to exit.
----------------------------------------------------------------------------------------------------------------------------
7. Create gunicorn directory in following path:
mkdir
/var/log/gunicorn
-----------------------------------------------------------------------------------------------------------------------------
8. Re-read and then update supervisor to configuration file:
sudo supervisorctl reread
It must say guni:available if not then you might have made some mistakes in gunicorn.conf file.
sudo supervisorctl update
--------------------------------------------------------------------------------------------------------------------------
9. Start supervisor to start at background:
sudo supervisorctl
status
It must say RUNNING pid …..
----------------------------------------------------------------------------------------------------------------------------
10. Go to the sites-available directory and configure below code:
sudo nano /etc/nginx/sites-available/default
Inside location area add followings:
Syntax:
location / {
include
proxy_params;
proxy_pass
http://unix:/path_to_project/app.sock;
}
Example:
location / {
include proxy_params;
proxy_pass http://unix:/var/www/html/Django/app.sock;
}
Check
whether the configuration file is ok or not by giving the command as:
sudo nginx -t
-------------------------------------------------------------------------------------------------------------------------
11. Configure the static file to be load by nginx:
Inside same nginx .conf file add following
configuration to configure ‘static’ file for the project.
location /static/ {
autoindex on;
alias /var/www/html/Django/static/;
}
It should
say:
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is
successful
--------------------------------------------------------------------------------------------------------------------------
12. Restart nginx and the supervisor using the command as:
sudo service
nginx restart
sudo supervisorctl restart all
-----------------------------------------------------------------------------------------------------------------------------
[Not
included in Video Tutorial]
NOTE: If you want to go to the
phpmyadmin directory again after all these above configurations by giving only
your_public_ip/phpmyadmin will give you url not found error for that go
to the directory as:
cd /etc/nginx/sites-available/default
Then add following configuration below and save it ctrl+o
and ctrl+x
location /phpmyadmin/
{
root
/usr/share/;
index index.php;
try_files $uri $uri/ =404;
}
Then restart nginx:
sudo service nginx restart
-----------------------------------------------------*** The End ***---------------------------------------------------
